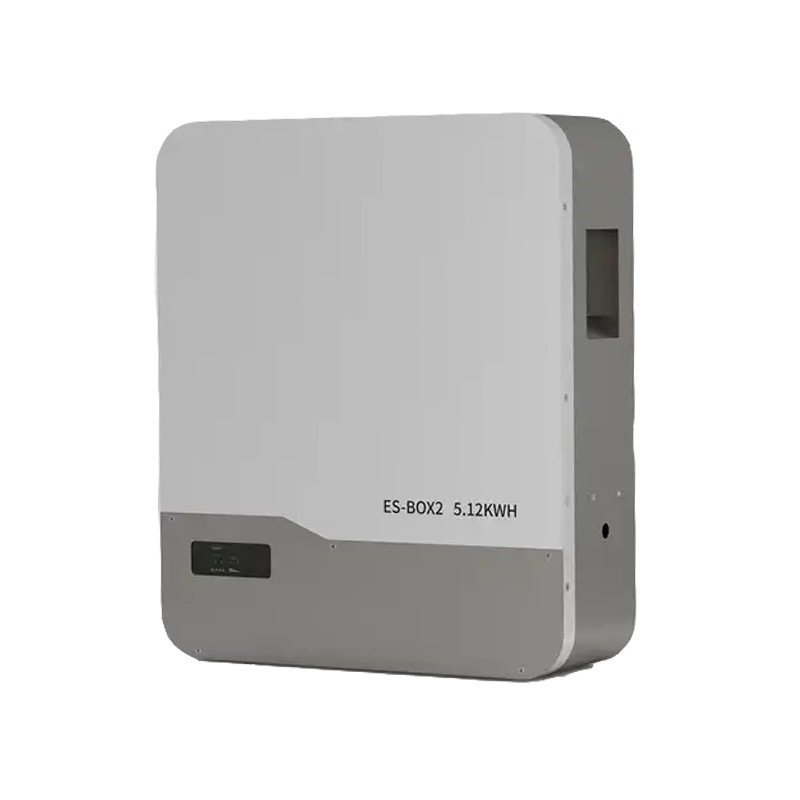

48V 100Ah Wall Mounted 5KW Home Battery Storage System With Inverter
48V 100Ah Wall Mounted Solar Panel Battery 5KW Storage System With Inverter
Solar Panel Battery details :
Nominal Voltage:51.2V -16S
Nominal Capacity: 102 AH
Nominal energy: 5.22 kWh
Operation voltage range:40.0V-58.4V
Standard charge current:20A
Max. Continuous charge current:100A
Standard discharge current:20A
Max. Continuous discharge current:100A
Temperature sensor protection:65℃
Charging temperature: 0~45℃
Working Temperature: -20~60℃
Over-current Fuse: 120A
Cycle life: 6000 times(80%DOD )
Communication: RS485/RS232/CAN
Box Size:600*510*173mm
Weight (KGS): 47.5KGS±0.5KGS
Solar Panel Battery Specifications :
| | |
| | |
| | |
| | |
| | |
| | Square / Cube / Prismatic / Prismary / Pouch 3.2V 100AH 102Ah 105Ah Li ion battery LiFePO4 Lithium iron phosphate battery |
| | |
Disharge Cut-off Protect Voltage | |
Charge Cut-off Protect Voltage | |
| | |
| | |
| | |
Compitable Inverter Brand | DEYE, Luxpower, Megarevo, SMA, Growatt, Solax, Solis,Sungrow, Sofar, Voltronic, Goodwe, Must off-grid or hybrid inverter etc. |
| | Max. 15 units in Parallels to get 76kwh. |
| | |
| | |
| | |
| | |
| | |
| | |
Discharge Temperature (℃) | |
| | |
| | –20°C to 30°C (–4°F to 86°F) Up to 95% RH, non-condensing State of Energy (SoE): 25% initial |
| | |
Solar Panel Battery Description :
EA ENERGY 5kWh Lithium Battery Storage System
Lifepo4 battery pack is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.
This battery keeps improvements (larger wiring panel, integrated lift handles, and swappable vented/solid housing plates) while adding ETL Certification to UL 1973 and closed-loop communication with Sol-Ark and Schneider XW Pro inverters.
Your battery works by storing excess electricity generated by your solar panels so it’s available on demand, day or night.Generate, store and use your own electricity without worrying about power outages or extra time-of-use costs.
The system provides 5 kilowatt-hours of reliable lithium battery storage and can be stacked with up to 5-10 additional battery in parallel to create huge wall-mounted energy storage banks. It's designed for easy connection with other solar and storage system components (communication ports now include a universal connector).
The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.
All they are grade A cells, Longer cycle life, full inspection before shipment.
Solar Panel Battery Features:
High-capacity, safe LiFePO4 battery
Wall-mounted, all-in-one design
Integrated WiFi communications
NEW - ETL Certified to UL Standard 1973
NEW - BMS firmware
NEW - communication ports include a universal connector
NEW - closed-loop communication available with Sol-Ark and Schneider XW Pro inverters
6,000+ cycles (@80% depth of discharge)
Advanced high/low temperature cycle performance
Up to 5-10 units can be stacked in parallel
Large wiring access panel for ample space for making connections
Includes battery, mounting brackets and screws, and communications cables
5-year Extended Charge Rate Warranty or 10-year Extended Life Warranty
Solar Panel Battery Products Details :
Solar Panel Battery Applications :
Application scenarios are mostly in power shortage areas, such as villas, hotels, stores, hospitals, schools. Multi-use energy range: 10KWH-100KWH, the inverter is mostly off-grid, can be multiple parallel kind.
